Name: Chic and Stylish: Our New BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) Collection Alaska USA.
SKU: BBR-BLS-3006
Price: 55.99 USD
Availability: InStock

New

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V)

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 2

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 3

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 4

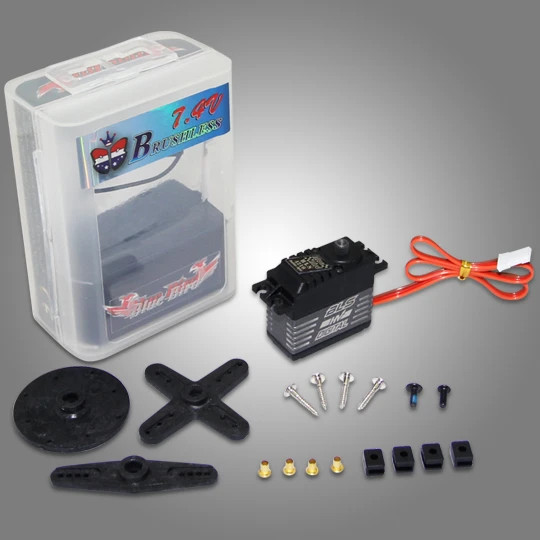

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) -Hallmark Sales Store 20191104144254e4f7j216036980604d2

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) -Hallmark Sales Store 20191104144254iw3jb31603698060ni4

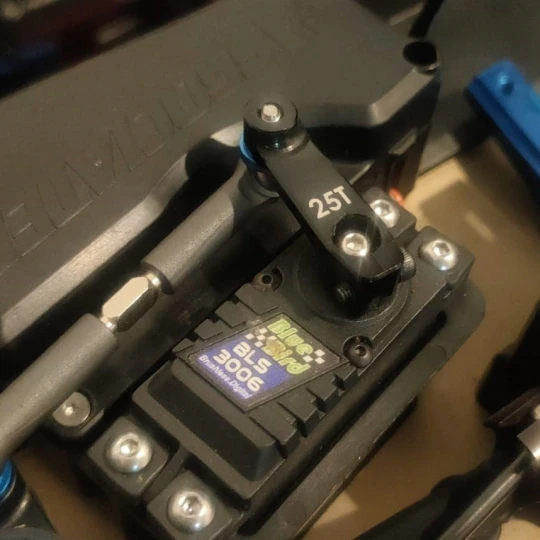

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) -Hallmark Sales Store 20210401113703blopj5

Original price was: $79.99.Current price is: $55.99.

SKU: BBR-BLS-3006 Categories: Accessories, Blue Bird Servos, Servos, Radios, Receivers & Servo Parts

Quick responses, top-notch service.
Free Shipping, Quality Goods
Multiple safe payment methods
Online assistance, always just a message away.

Description
Reviews (0)

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V)

APPLICATION / SUITABLE

Priority for 3D Airplane 26% 70-80″, Large Jet & 1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro)

Specifications

Torque At 6.0V	25.2 kg-cm / 350.0 oz-in
Torque At 7.4V	30.8 kg-cm / 427.8 oz-in
Torque At 8.4V	35.7 kg-cm / 495.9 oz-in
Speed At 6.0V	0.08 sec / 60°
Speed At 7.4V	0.06 sec / 60°
Speed At 8.4V	0.05 sec / 60°

Protection Mechanism

Soft Start Protection	Soft start to a neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection	When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.

Power Supply

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

Control Specification

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width	0.001ms ( Default：1us)

Mechanical Specifications

Ball Bearing	Dual
Gear	All Steel Alloy Metal Gears
Motor	High Premium Brushless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

Physical Specifications

Dimension (mm)	40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram)	76.5 ± 1 grams / 2.70 oz

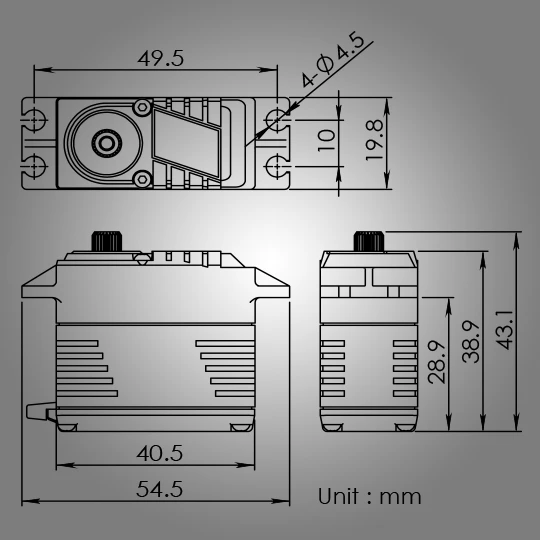

Product Picture / Dimension Sketch
