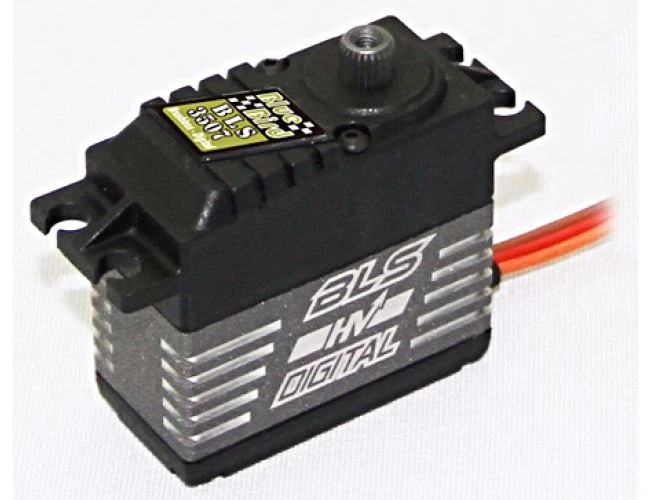

BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS

New
BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS
BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS - Image 2
BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS - Image 3
BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS -Hallmark Sales Store 37081
BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 Sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS -Hallmark Sales Store 37082

Original price was: $74.99.Current price is: $52.49.

Buy Now
SKU: BBR-BLS-3507 Categories: , ,
  • Quick responses, top-notch service.
  • Free Shipping, Quality Goods
  • Multiple safe payment methods
  • Online assistance, always just a message away.

BLS-3507, 8.4V 40.5Kg/562.5oz, 8.4V 0.06 sec, HV-DIGITAL, ULTRA HIGH TORQUE, SUPER HIGH SPEED, BRUSHLESS

Applications

Excellent for 3D Airplane, 1/6 or 1/8th Buggy, Truggy, Crawler, Monster & Large Jet.  (EP / Gas / Nitro)



Torque At 6.0V   28.5 kg-cm / 395.9 oz-in
Torque At 7.4V   35.6 kg-cm / 494.5 oz-in
Torque At 8.4V   40.5 kg-cm / 562.5 oz-in
Speed At 6.0V   0.09 sec / 60°
Speed At 7.4V   0.07 sec / 60°
Speed At 8.4V   0.06 sec / 60°

Specifications



Power Supply

Operating Voltage Range

 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)



Standard Aluminum Cased Servo

Control System Digital Controller / AD 12-Bits Resolution ( 4096 Steps )
Frequency：333Hz / Neutral：1520us
Dead Band Width 0.001ms ( Default：1us)



Mechanical Specifications

Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS

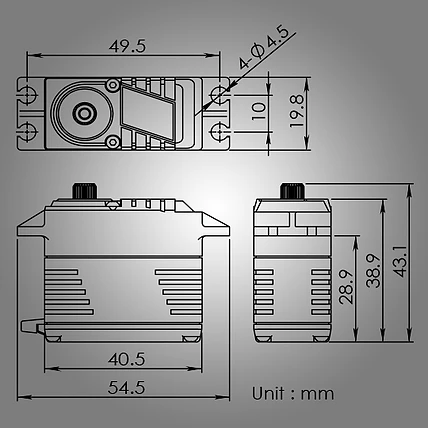

Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 76.5 ± 1 grams / 2.70 oz
