Name: Brighten Your Life with Stylish BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS from Hallmark Sales Store America.
SKU: BBR-BMS-2109
Price: 38.49 USD
Availability: InStock

New

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS - Image 2

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS - Image 3

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS - Image 4

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS -Hallmark Sales Store 2109.1

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS -Hallmark Sales Store 2109.2

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS -Hallmark Sales Store 2109.3

Original price was: $54.99.Current price is: $38.49.

SKU: BBR-BMS-2109 Categories: Accessories, Blue Bird Servos, Servos, Radios, Receivers & Servo Parts

Quick responses, top-notch service.
Free Shipping, Quality Goods
Multiple safe payment methods
Online assistance, always just a message away.

Description
Reviews (0)

The 2109 has been replaced with the BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 with more Torque andSoft-Start Protection!!)

APPLICATION / SUITABLE

Very Fast servo good for throttle, 1/8, 1/10th Buggy, Truggy, Crawler & 3D Airplane, Helicopter (EP / Gas Engine)

SPECIFICATIONS

Torque At 6.0V	19.2 kg-cm / 266.7 oz-in
Torque At 7.4V	23.3 kg-cm / 323.6 oz-in
Torque At 8.4V	26.8 kg-cm / 372.3 oz-in
Speed At 6.0V	0.076 sec / 60°
Speed At 7.4V	0.061 sec / 60°
Speed At 8.4V	0.052 sec / 60°

POWER SUPPLY

Operating Voltage Range

6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe )

STANDARD FULL ALUMINUM SERVO

Control System	Digital Controller / 12-Bits ( 4096 Steps )
Dead Band Width	0.001ms ( Default：1us)

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual
Gear	Titanium Alloy Gears
Motor	Premium Coreless Motor
Horn / Gear Spline	25 Teeth ( Same as F-Type )

PHYSICAL SPECIFICATIONS

Dimension (mm)	40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram)	72 ± 1 grams / 2.54 oz

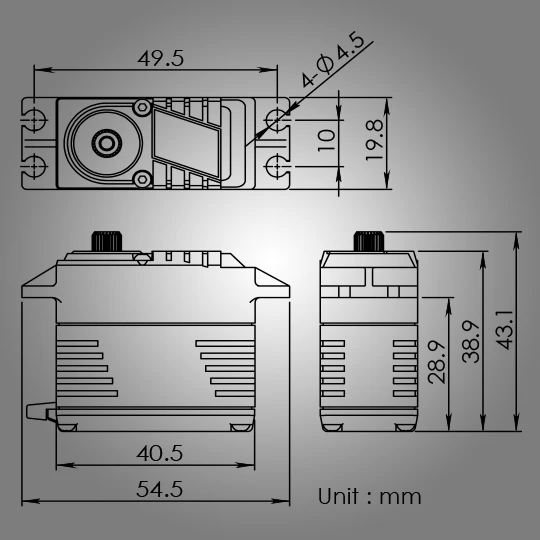

Product Picture / Dimension Sketch

BMS-2109, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, CORELESS, TITANIUM GEARS -Hallmark Sales Store BLS 1004 1306 1507 1609 2103 2112 2209 2905 3507 3114 4210 BMS 0804 1412 1715 2109 2110 2514 Dim ok(8)
